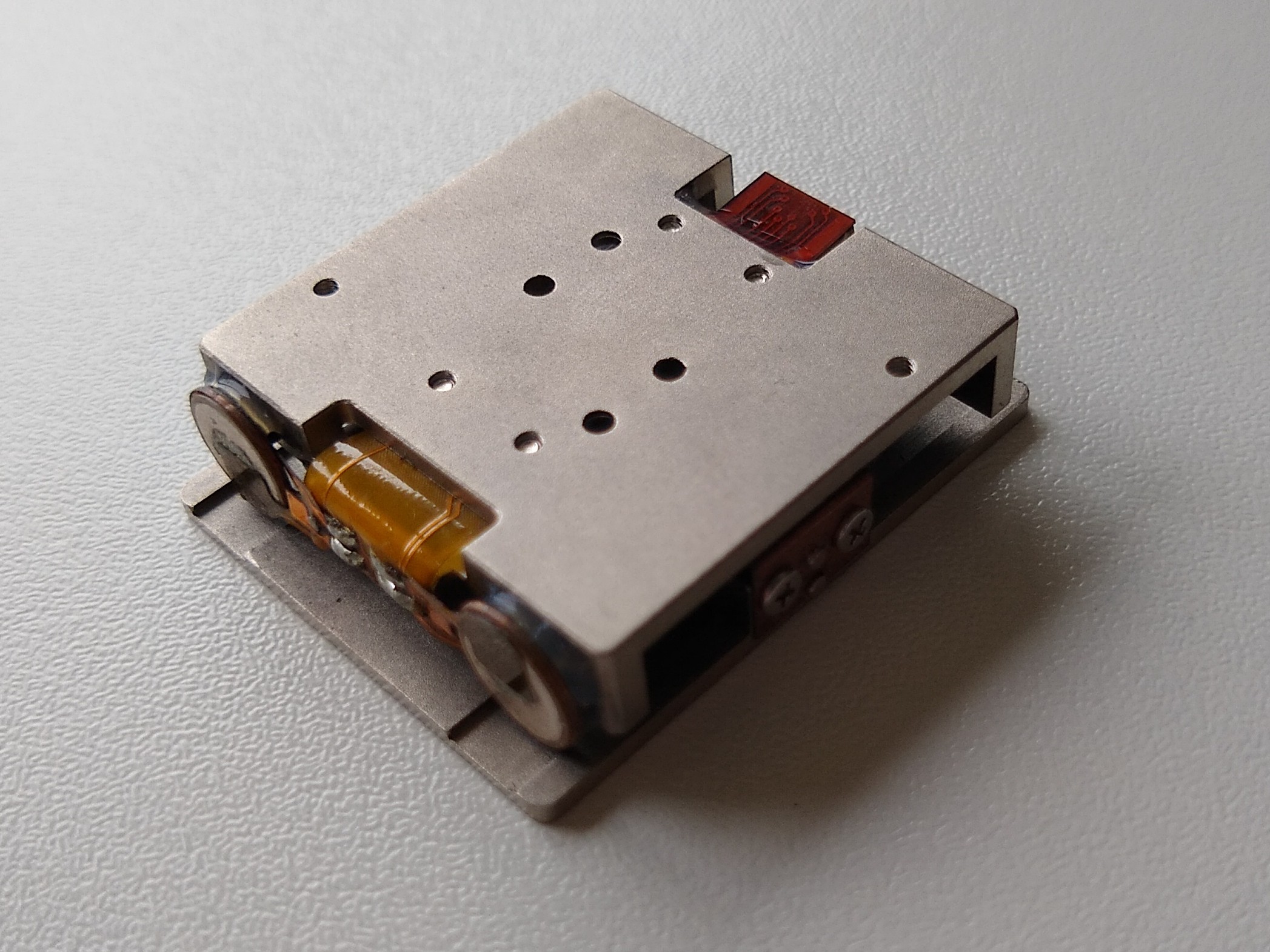

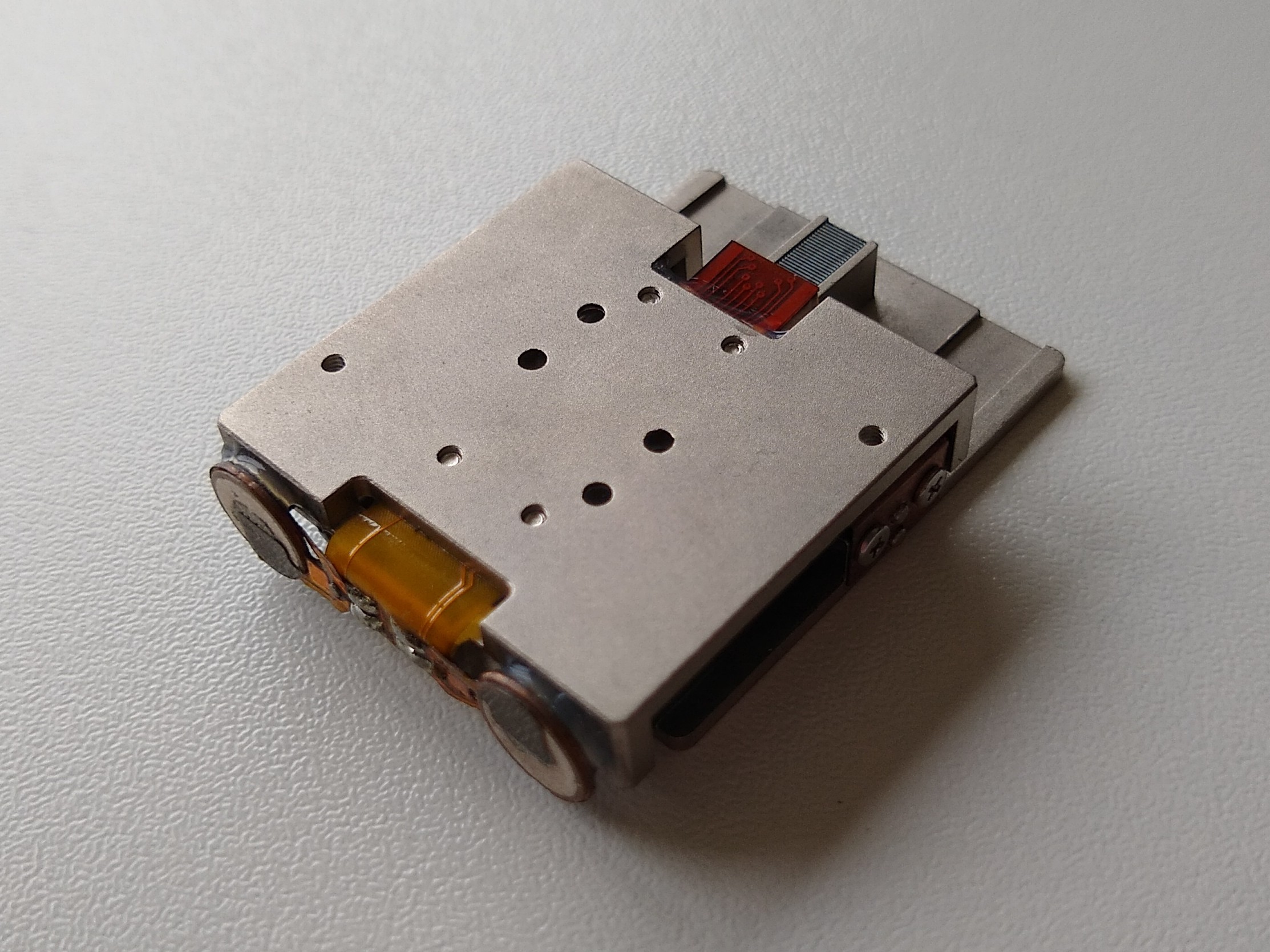

Piezo Stage PZS-X70-15

Real Stroke 15 mm
Resolution (with Incremental Encoding) 0.1 μm
Repeatability ± 2 μm
Thrust Force ≤ 20 g
Holding Force > 250 gf
Speed (full stroke) >10 mm/s
Application Driver Multi channel Master PMC2001
Kategorie:

Whether in laboratory automation or robotics, precise positioning with remote control plays an important role.

Either configurate an existing closed loop package, ready to mount, wire, and run or alternatively just choose the components and develop individual motorized solutions. Depending on load, stroke, accuracy demand, control interface and so forth, you can work out your optimal system design with full support from our engineer team.
