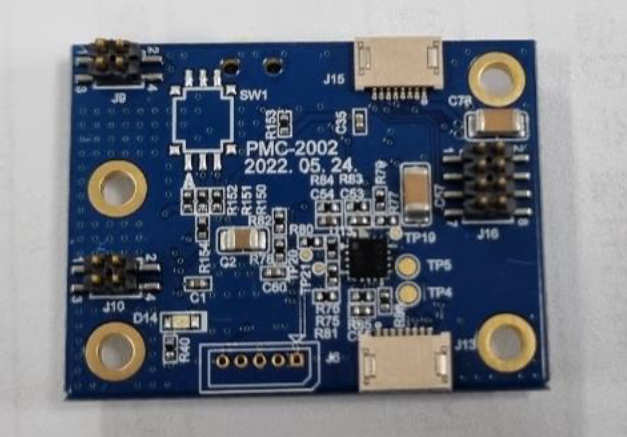

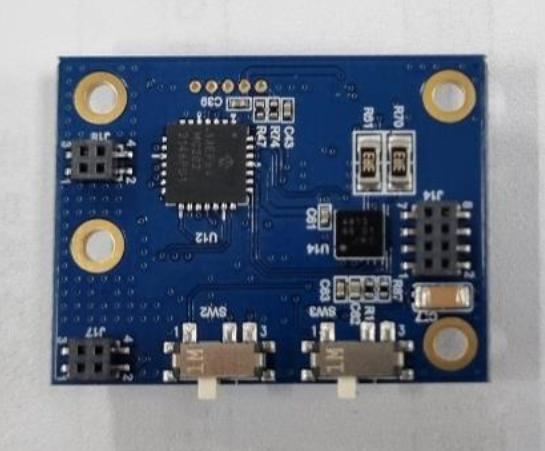

Peripheral Board for Piezo Linear Stages (PZM-PMC2002)

Model Peripheral Board PZM-PMC2002
Operating Voltage 5V [±10%]
Electrical power 1.5W
Power consumption 0.3A
Com muni cation i2C
User software PZM Controller PC Terminal
Environmental
Ambient operating temperature 0 to +50°C
Storage temperature -20°( to + 70°(
Operating humidity 0 to 80%

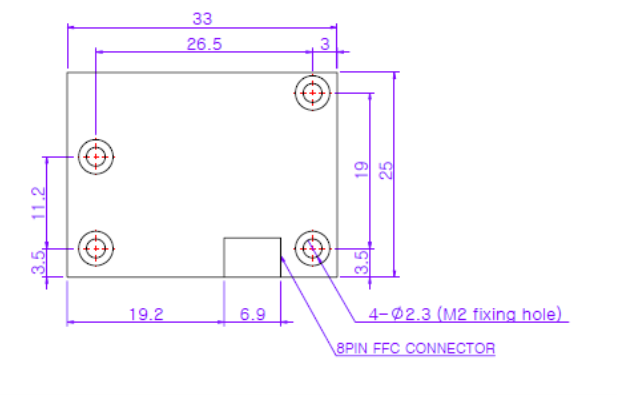

Dimensions 33 mm x 25 mm x 10 mm
Weight 5 g
